VTCR

Klips wiązarów koszowych

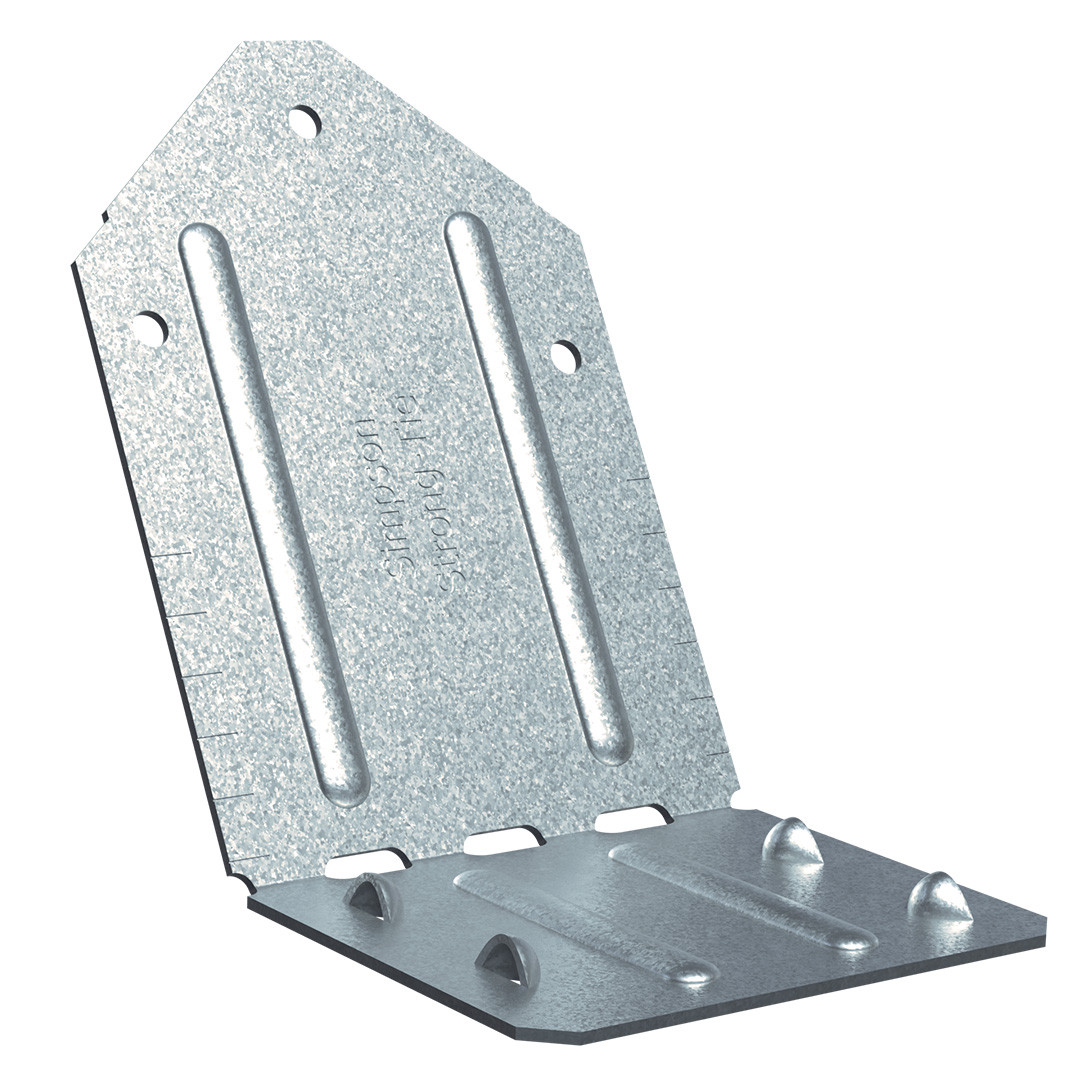

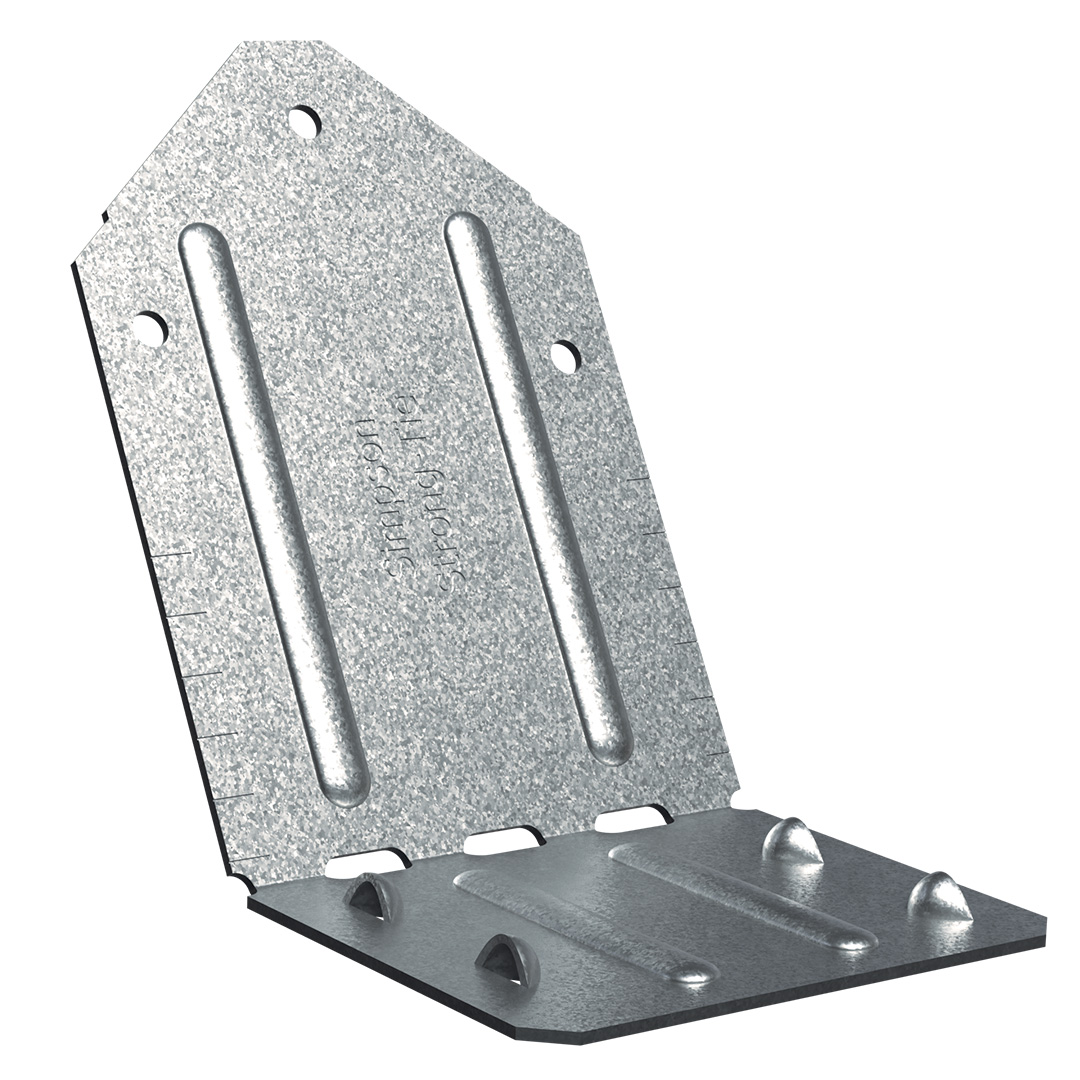

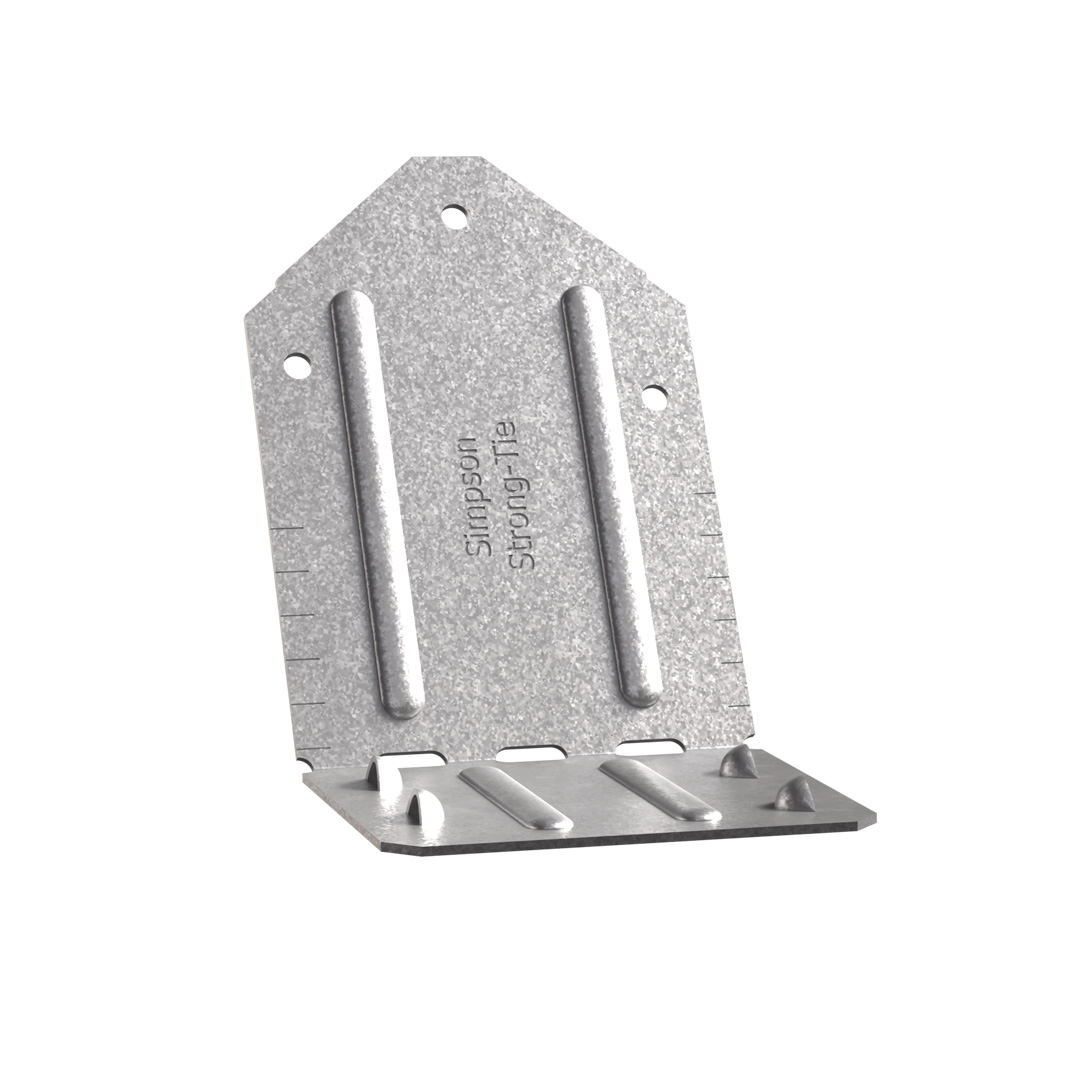

Klipsy wiązarów VTCR jest złączem odginanym co pozwala dostosować klips do nachylenia połaci dachowej. Otwory kopułowe wymuszają wbijanie gwoździ w wiązar główny pod kątem 45°. Dzięki temu klipsy VTCR można stosować przy wiązarach o szerokości 45mm.


Oznaczenie CE
ETA
Klasa użytkowania 2
Stal ocynkowana Z275

Szczegóły produktu

Obrazy

Właściwości

Materiał

Gatunek Stali:
G90
Grubość blachy 1.2 mm
Ochrona antykorozyjna:
Z ASTM A653

Dane techniczne

Wymiary produktu

Referencje Wymiary [mm] Ramię B Ramię A
A B C t Ø3.8 kopułkowy Ø4
VTCR6451901.243
Array

Właściwości użytkowe

Referencje Łączniki Nośności charakterystyczne [kN]
Wiązar podporowy Wiązar koszowy R1,k R2,k
Ilość Typ Ilość Typ 35mm 47mm
VTCR4N3.35x653N3.75x30681.0
  1. 35 mm i 47 mm odnoszą się do grubości wspólnych nośnych belek wiązara
  2. Obciążenia R2 mają zastosowanie dla drewna o grubości 35 mm i 47 mm.

Instalacja

Montaż

Mocowanie

Mocowanie do drewna:
Za pomocą gwoździ kwadratowych skrętnych N3.75 x 30 i CNA Ø3,1 x 60

Installation

  • Install VTCR with all specified fasteners:  3.35x65mm round wire nails into the supporting truss and 3.75x30mm square twsit nails into the valley truss
  • Position the VTCR onto the supporting truss and install the 3.35x65mm nail at an angle of 45º through the dome nail holes. (Fig 1)
    • Note:  when the supporting truss is 35mm thick, a portion of the nails will be exposed before penetrating into the side of the truss (Fig 3)
  • Bend the  uppper flange of the VTCR to the required angle; position the valley truss against this leg and install the 3.75x30mm nail into the bottom chord of the valley truss (Fig 1)
  • Install a VTCR on each of the top chords of the supporting trusses at each intersection of supporting truss and valley truss

Aprobaty i Deklaracje

Deklaracja Właściwości Użytkowych (DoP)

Aprobaty Techniczne (ETA)

Biblioteka CAD

DWG (2D) REVIT (2D) DWG (3D) REVIT (3D) SAT XML
