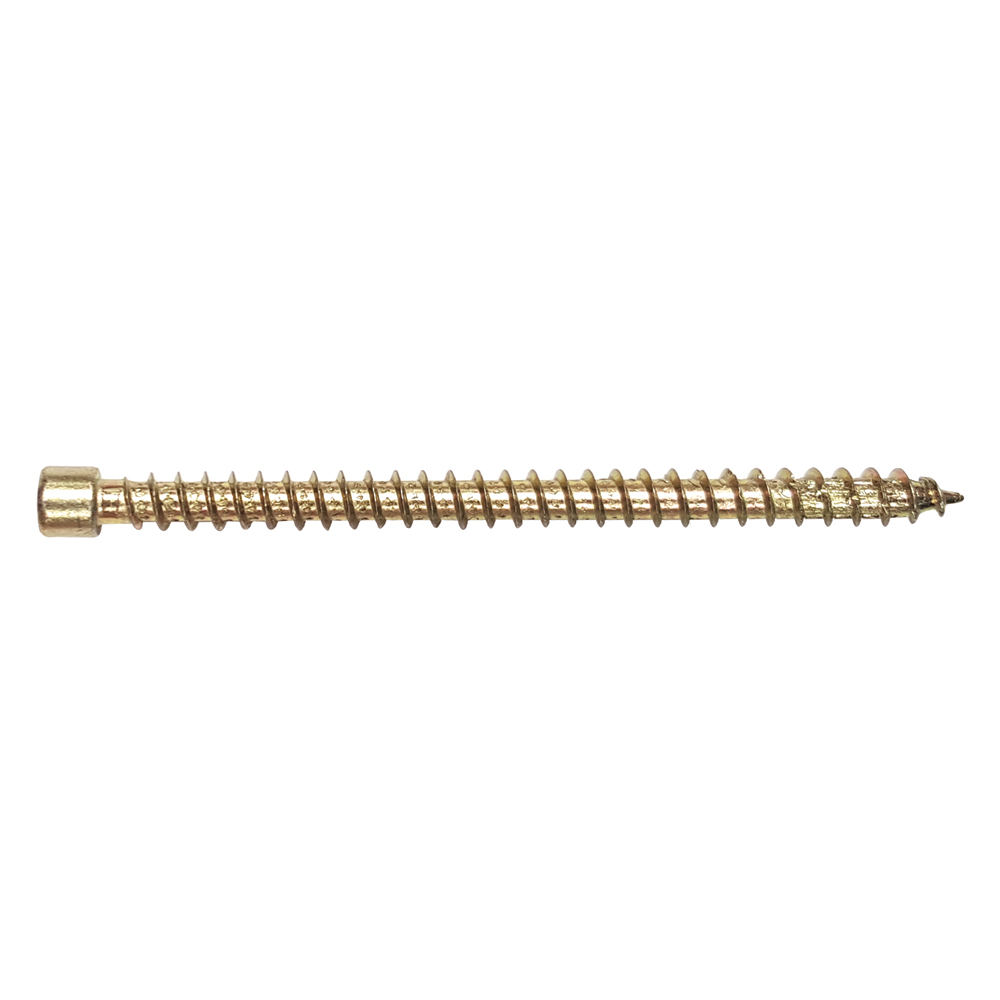

ESCRFTZ

Cylindryczne wkręty konstrukcyjne z pełnym gwintem

Wkręty ESCRFTZ to stalowe wkręty o pełnym gwincie i główce cylindrycznej. Wkręty stosuje się do ukrytych połączeń drewnianych lub wzmocnień konstrukcyjnych . Pełny gwint pozwala na optymalnie przenoszenie obciążenia między łączonymi elementami.

Karta techniczna

Oznaczenie CE

ETA

Klasa użytkowania 2

Cynkowane galwanicznie na żółto

Środowisko wewnętrzne

Solid Wood

Szczegóły produktu

Obrazy

Właściwości

Materiał

Hartowana stal węglowa
Ocynkowany elektrolitycznie, pasywowany na żółto

Zalety

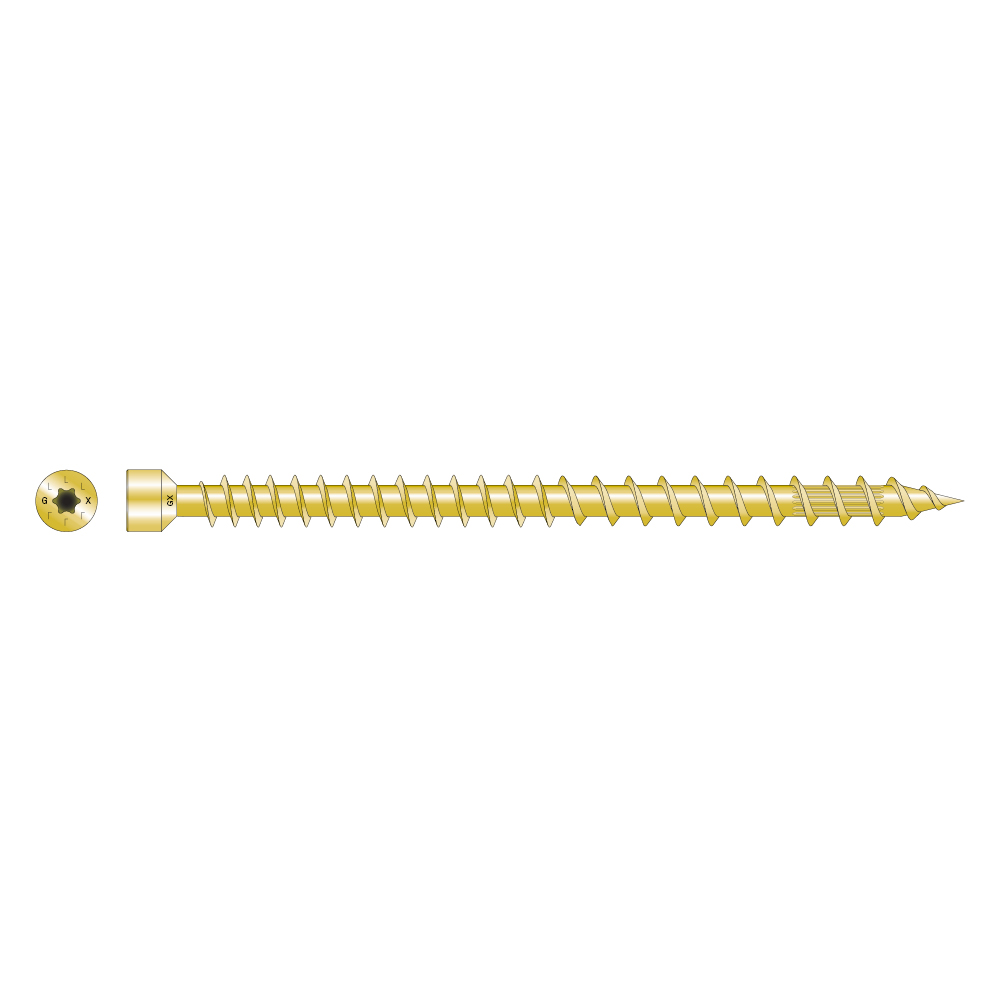

Główka cylindryczna prosta: idealna do połączenia drewna do drewna
Zintegrowany gwint asymetryczny
Szpic ostry gwintowany

Zastosowanie

Obszar zastosowań

Drewno lite, drewno klejone, CLT, płyty drewnopochodne
Wzmocnienie drewna

Dane techniczne

Wymiary

Wymiary łączników

Referencje	Wymiary [mm]					Bit
Referencje	d	l	d_h	d₁	l_g	Bit
ESCRFTZ8.0X120	8	120	10.2	5.2	110	T-40
ESCRFTZ8.0X140		140	10.2	5.2	130	T-40
ESCRFTZ8.0X160		160	10.2	5.2	150	T-40
ESCRFTZ8.0X180		180	10.2	5.2	170	T-40
ESCRFTZ8.0X200		200	10.2	5.2	190	T-40
ESCRFTZ8.0X220		220	10.2	5.2	210	T-40
ESCRFTZ8.0X240		240	10.2	5.2	230	T-40
ESCRFTZ8.0X260		260	10.2	5.2	250	T-40
ESCRFTZ8.0X280		280	10.2	5.2	270	T-40
ESCRFTZ8.0X300		300	10.2	5.2	290	T-40
ESCRFTZ8.0X350		350	10.2	5.2	340	T-40
ESCRFTZ8.0X400		400	10.2	5.2	390	T-40

Właściwości charakterystyczne produktu

Table "Właściwości charakterystyczne produktu" cannot be displayed : no references available.

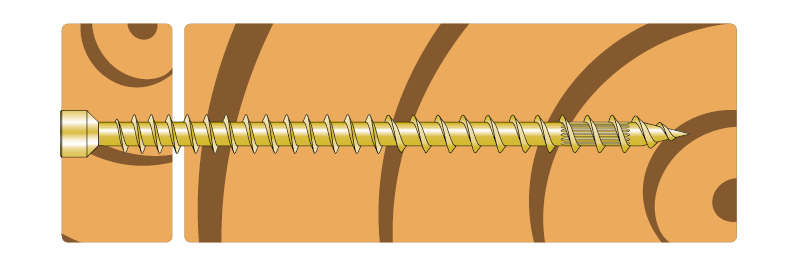

Instalacja

Montaż

Spacing and Edge distances - Shear loaded screws

Table "Spacing and Edge distances - Shear loaded screws" cannot be displayed : no references available.

a₁ and a₂ can be multiplied by 0.85 for panel/timber assembly, and by 0.7 for steel/timber assembly.

Spacing and edge distances - Axially loaded screws

Table "Spacing and edge distances - Axially loaded screws" cannot be displayed : no references available.

Abacus

Timber to Timber characteristic capacities

Referencje	Product characteristic capacities - Timber to Timber C24
	Axial resistance		Shear resistance parallel to the grain depending of t₁ [Rv.0.k] [kN]							Shear resistance perpendicular to the grain depending of t₁ [Rv.90.k] [kN]
	t₁ [mm]	R_ax.k [kN]	35 [mm]	40 [mm]	45 [mm]	60 [mm]	75 [mm]	80 [mm]	≥100 [mm]	35 [mm]	40 [mm]	45 [mm]	60 [mm]	75 [mm]	80 [mm]	≥100 [mm]
ESCRFTZ8.0X120	60	5.24	4.47	4.68	4.68	4.68	4.68	4.68	-	3.63	3.82	4.02	4.09	4.02	3.82	-
ESCRFTZ8.0X140	70	6.29	4.74	4.94	4.94	4.94	4.94	4.94	4.94	3.9	4.09	4.29	4.35	4.35	4.35	4.09
ESCRFTZ8.0X160	80	7.34	5	5.2	5.2	5.2	5.2	5.2	5.2	4.16	4.35	4.55	4.61	4.61	4.61	4.61
ESCRFTZ8.0X180	90	8.38	5.26	5.46	5.46	5.46	5.46	5.46	5.46	4.42	4.61	4.81	4.87	4.87	4.87	4.87
ESCRFTZ8.0X200	100	9.43	5.52	5.73	5.73	5.73	5.73	5.73	5.73	4.65	4.87	5.07	5.14	5.14	5.14	5.14
ESCRFTZ8.0X220	110	10.48	5.78	5.99	5.99	5.99	5.99	5.99	5.99	4.65	5.03	5.33	5.4	5.4	5.4	5.4
ESCRFTZ8.0X240	120	11.53	6.05	6.25	6.25	6.25	6.25	6.25	6.25	4.65	5.03	5.43	5.56	5.56	5.56	5.56
ESCRFTZ8.0X260	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ESCRFTZ8.0X280	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ESCRFTZ8.0X300	150	14.67	6.33	6.74	6.74	6.74	6.74	6.74	6.74	4.65	5.03	5.43	5.56	5.56	5.56	5.56
ESCRFTZ8.0X350	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ESCRFTZ8.0X400	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

These capacities are valid for:

Timber element under the head with thickness ≤ t₁ disclosed in adjacent column
Screw axis between 45° and 90° from timber grain for ESCR(XXX), and 90° from timber grain for all other screws.

For tightening screws (partially threaded), t₁ dimension is the maximum thickness of the under-head timber member for which the thread is fully in the pointside timber member, for an optimum installation and tightening.

The shear capacities are given for several timber thicknesses t₁ of the under-head member under the following configurations:

Load axis at 0° from both timber grains R_v.0°.k
Load axis at 90° from both timber grains R_v.90°.k

These capacities are valid for C24 timber grades or higher
The pre-drilled hypothesis for capacity and distances calculation is fulfilled.
For partial threaded screws, capacities are only given for configurations where the thread is less than 5mm in under-head timber member, in order to achieve optimum installation and tightening.
Clause (2) in 8.3.1.2 from EN1995-1-1:2004+A2:2014 about embedment length is ignored in these calculations.

Crossed pairs of screws - characteristic capacities

Referencje	Crossed pair of screws - characteristic capacities
	Header	Joist			Installation distance		Characteristic capacities (Pull-out / Buckling) R_v.pair = min(R_w.k.pair ; R_buck.k.pair) [kN]
	b_h min [mm]	h_j min [mm]	1 pair	2 pairs	m [mm]	m_i [mm]	1 pair		2 pairs
	b_h min [mm]	h_j min [mm]	b_j min [mm]	b_j min 2 [mm]	m [mm]	m_i [mm]	R_w.k.pair [kN]	R_buck.k.pair [kN]	R_w.k.pair [kN]	R_buck.k.pair [kN]
ESCRFTZ8.0X120	64	128	84	124	68	73	7.41	3.7 + 13.99 /kmod	13.82	6.91 + 26.11 /kmod
ESCRFTZ8.0X140	64	128	84	124	68	73	8.89	4.44 + 13.99 /kmod	16.59	8.29 + 26.11 /kmod
ESCRFTZ8.0X160	67	128	84	124	68	73	10.37	5.18 + 13.99 /kmod	19.35	9.67 + 26.11 /kmod
ESCRFTZ8.0X180	74	140	84	124	68	73	11.85	5.92 + 13.99 /kmod	22.12	11.06 + 26.11 /kmod
ESCRFTZ8.0X200	81	154	84	124	75	80	13.33	6.66 + 13.99 /kmod	24.89	12.44 + 26.11 /kmod
ESCRFTZ8.0X220	88	168	84	124	82	87	14.82	7.41 + 13.99 /kmod	27.65	13.82 + 26.11 /kmod
ESCRFTZ8.0X240	95	182	84	124	89	94	16.3	8.15 + 13.99 /kmod	30.42	15.21 + 26.11 /kmod
ESCRFTZ8.0X260	102	196	84	124	96	101	17.78	8.89 + 13.99 /kmod	33.18	16.59 + 26.11 /kmod
ESCRFTZ8.0X280	109	210	84	124	103	108	19.26	9.63 + 13.99 /kmod	35.95	17.97 + 26.11 /kmod
ESCRFTZ8.0X300	117	225	84	124	111	116	20.74	10.37 + 13.99 /kmod	38.71	19.35 + 26.11 /kmod
ESCRFTZ8.0X350	134	260	84	124	128	133	24.45	12.22 + 13.99 /kmod	45.63	22.81 + 26.11 /kmod
ESCRFTZ8.0X400	152	295	84	124	146	151	28.15	14.07 + 13.99 /kmod	52.54	26.27 + 26.11 /kmod
